Create an Environment

General Information

Environments are the main "active" component of JoyDX to simplify collaboration initiated via a profile.

You can choose to either create them for local use from within the environments screen or for the purposes of collaboration from within the organisation manager.

Each of the four sections within the interface are collapsible by clicking within the title space

  • Environment Name A unique identifier for the environment
  • Description Summary information to provide extra context beyond the name

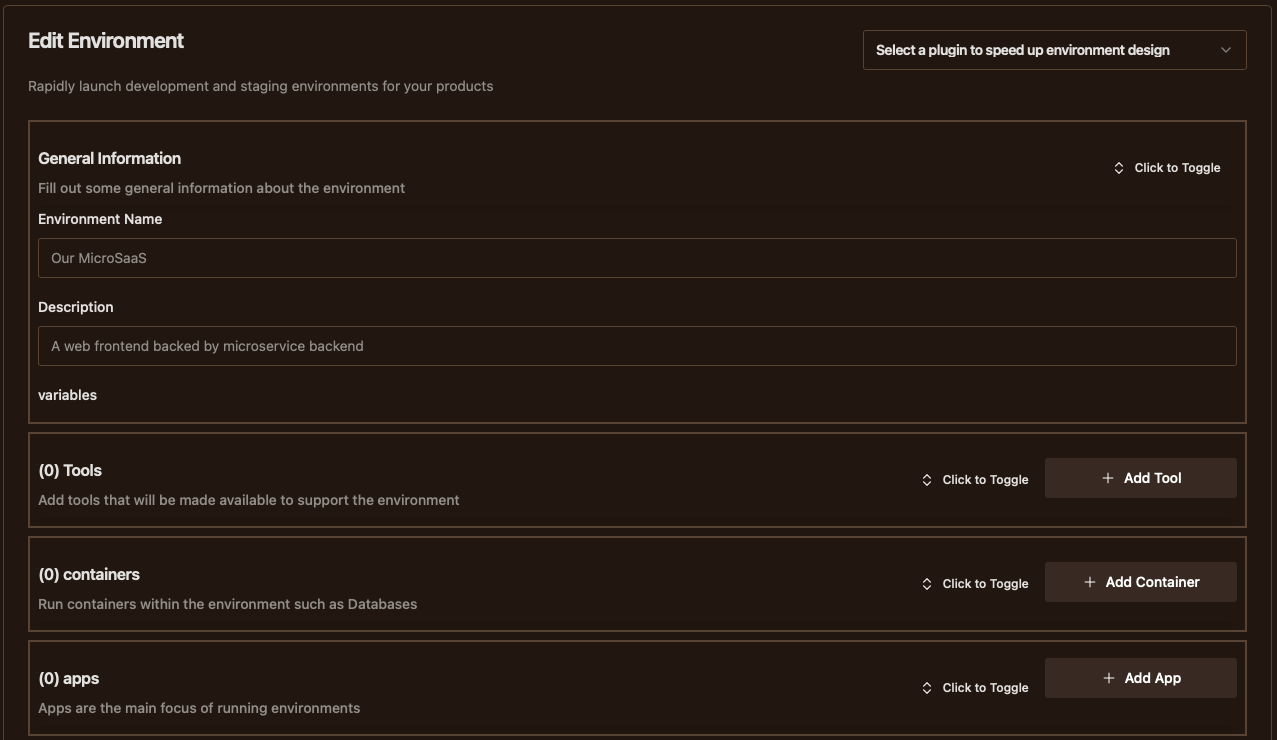

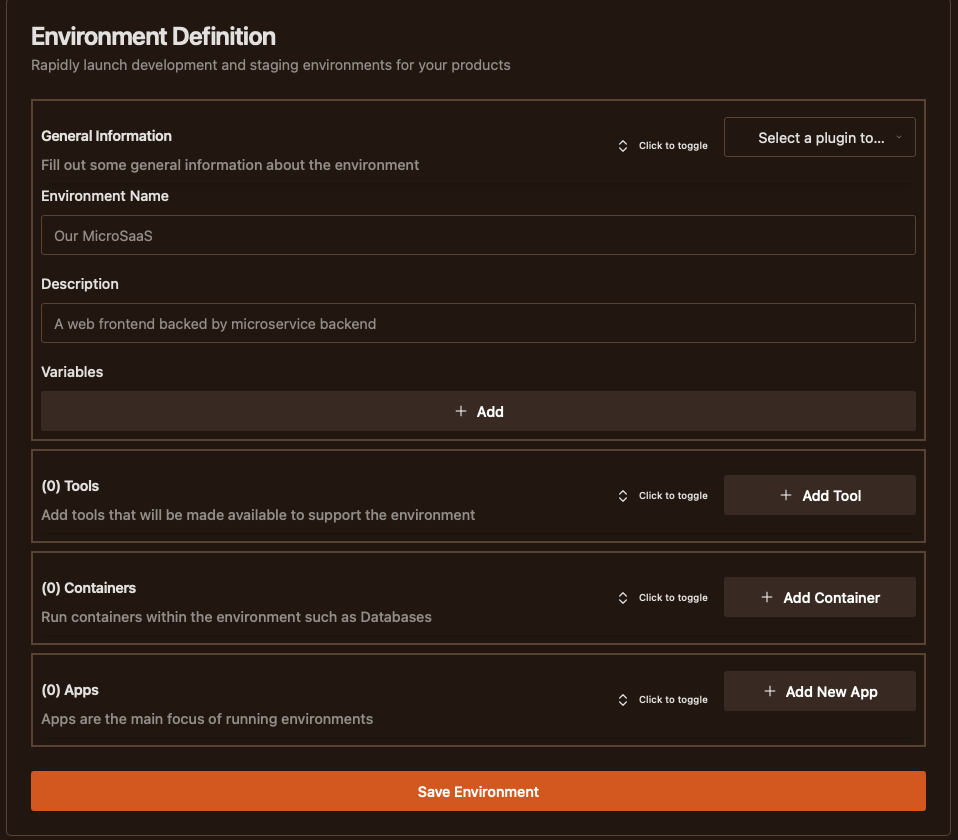

Environment create form image

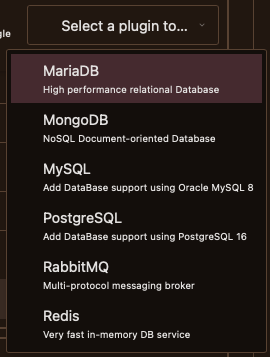

For your convenience, located in the top right corner, there is a "plugin" dropdown menu that allows you to quickly run macros affecting the environment definition.

At present, this is limited to adding common storage services in container form. In the near future, this will be customisable via the organisation manager; in the meantime, if there is a service you would like to add not included, please get in contact

dashboard feature image

To add support for runtime customisable variables that get made available to the environment and template service, you can define as many variables in key / default value as you want within the meta section. If you attempt to use a duplicate key, it will reset and show you a toast message.

dashboard feature image

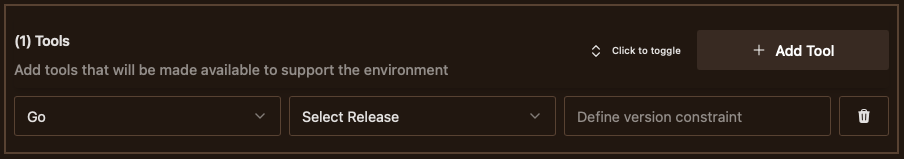

For any tools needed within the environment, you should exhaustively define them by clicking the "Add Tool button", choosing from the select menu, and optionally restrict version with the release dropdown / version constraint.

dashboard feature image

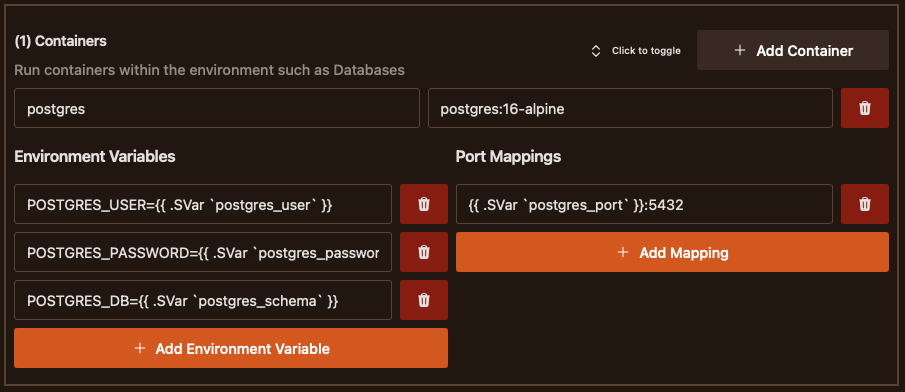

Containers

Containers are the recommended approach to including throwaway services where you want to throwaway state between executions

  • Container Name Identifier for the container
  • Container Image Container image and tag, optionally prefixed with the registry address. e.g. docker.io/postgres:16-alpine
dashboard feature image

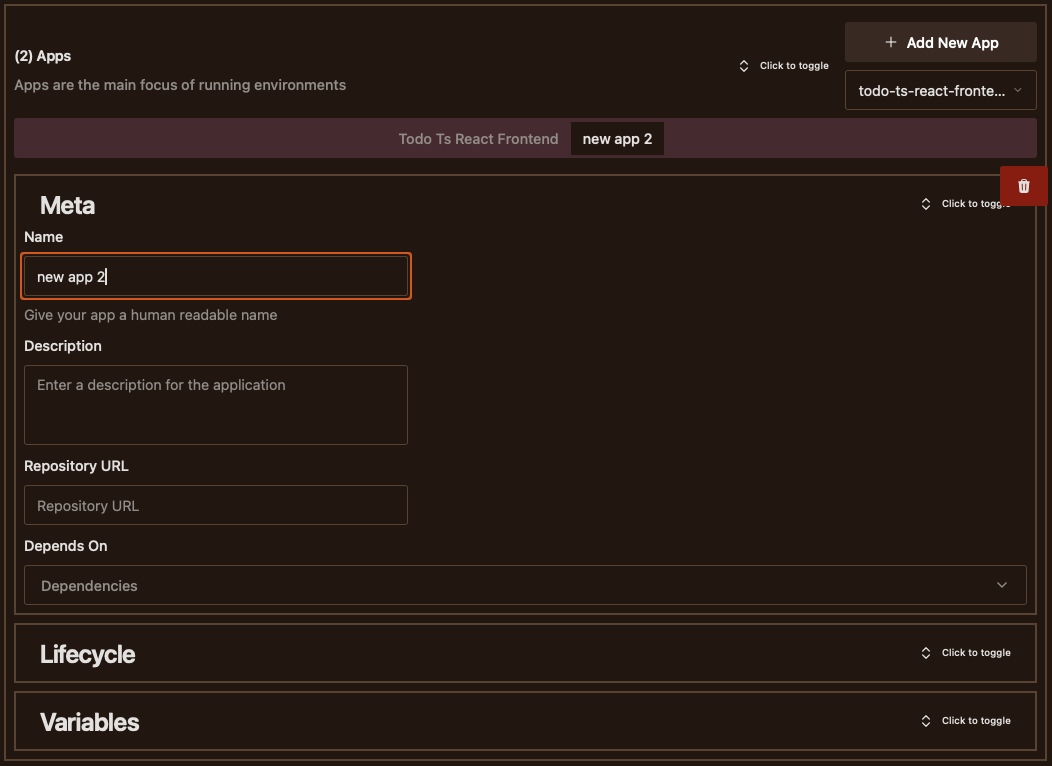

Apps

Apps are software projects where you have access to the source code. If you are already tracking apps and have created a config profile, you can quickly add an app to your environment using the dropdown menu. When you add an existing app or add a new app, you can between their configurations using the tabs.

Due to the number of options for configuring an app, configuration is broken down in to further sections

  • Name Identifier for the application
  • Description Optionally include extra summary information about the application for better context
  • Repository URL Web address of the application source
  • Depends On A multi-select drop-down that will allow selection of already defined containers / apps to control startup order
dashboard feature image

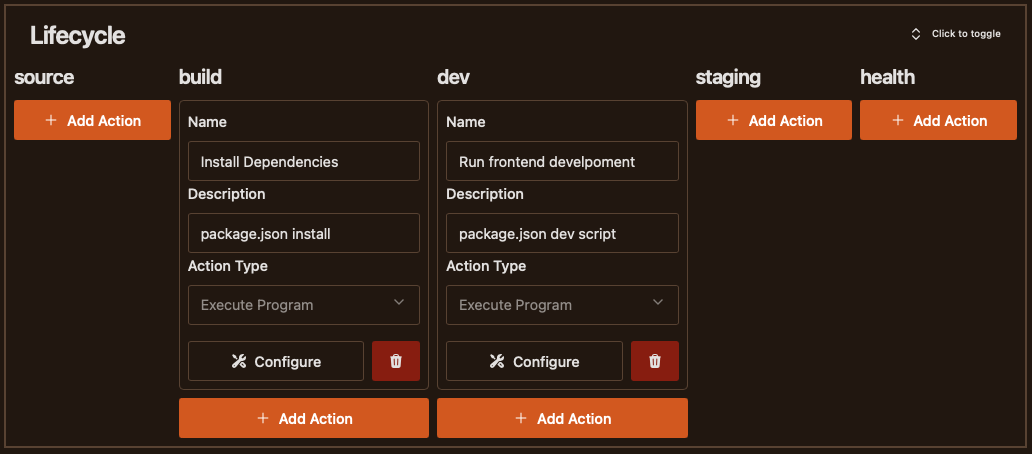

Apps have a lifecycle consisting of 5 separate stages that consist of task engine actions.

  • Sourcing Instructions on making the source code available. If left undefined, JoyDX will consider a GIT clone of the repository URL
  • Build Procedures used to make the application ready for launch such as compiling the app or installing dependencies
  • Development Running the application in a mode suitable for modification or debugging
  • Staging Running the application in a mode representative of production suitable for testing and quality assurance
  • Health Operations to run intermittently when used within environments to check that the application is in a working state and not erroring
dashboard feature image

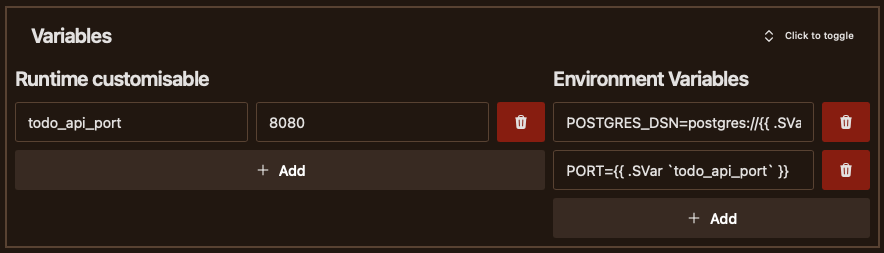

Within the variables section, you can add further runtime customisable variables and also environment variables. There is a minor difference between the two

  • Runtime Customisable Made available to the environment but not used by default
  • Environment Variables Included in the execution stage to configure execution
dashboard feature image
